What is a Universal Dividing Head For Milling Machine?

The Universal Dividing Head For Milling Machine is a precision universal dividing head milling machine vertical and horizontal indexing dividing head fast crank milling machine dual-use indexing head manual indexer.

What is a dividing head?

The dividing head also called indexing dead or indexing dividing head is installed on the milling machine to divide the workpiece into equal parts.

The CNC dividing head is one of the main accessories of CNC milling machines, machining centers, and other machine tools, and also the main accessory of semi-automatic milling machines, boring machines, and other types of machine tools.

The CNC dividing head is connected with the corresponding CNC control device or the unique control system of the machine tool itself, and connected with 4~6Mp compressed air, which can automatically complete the clamping, unclamping and circumferential indexing of the machined parts at any angle. It can be used in both vertical and horizontal positions.

With the adoption of CNC dividing heads, it can greatly improve labor productivity and the machining quality of the machined parts.

The CNC dividing head is the best auxiliary tool for machining complex products. The following is a specific explanation of its usefulness.

First: install the workpiece into the required angle for cutting processing (such as milling bevels, etc.).

Second: when milling spiral groove, the indexing dividing head hanging wheel axis and the milling machine longitudinal table screw with “exchange gear” connection, when the table moves, the workpiece on the indexing head can get indexing

Third: various indexing methods (simple indexing, compound indexing, differential indexing) are used to carry out various indexing work.

Fourth: CNC indexing dividing head can also work together with an independent indexing head controller. Use the indexing dividing head controller to control the CNC indexing head work.

Universal Dividing Head For Milling Machine Specifications

Universal Dividing Head
SpecificationMounting ChucksClamping RangeCenter HeightTotal Height of Standing upTotal Height HorizontallyBase SizeThrough Hole SizeGross Weight
4″K11 1002-80100240170168×901622
5″K11 1252-110100250170168×901625
6″K11 1603-145128320220115×2052142
8″K11 2002-200128340240115×2052150

The Universal Dividing Head For Milling Machines is supplied by DGMF Mold Clamps Co., Ltd, the mold clamps Manufacturer in China that also provides injection mold componentsdie press componentsmachine tools, and fasteners for your best choice.

What is the indexing dividing head price?

The Universal Dividing Head For Milling Machine has 4 different specs, the dividing head price has 4 different indexing head prices too.

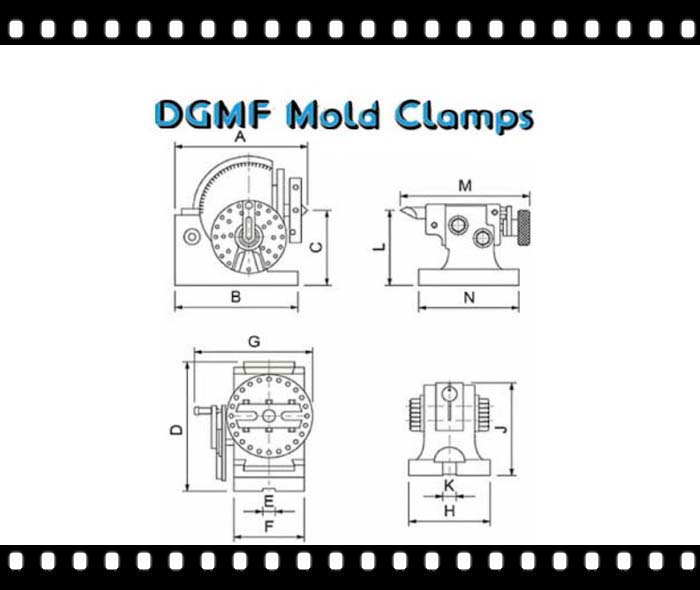

For the universal dividing head for sale, contact the DGMF engineering/sales team for the dividing head for the milling machine prices, Universal Dividing Head For Milling Machine inventory, Universal Dividing Head For Milling Machine drawing, etc.

Universal Dividing Head For Milling Machine Main features

Flexible dividing/indexing

Vertical and horizontal use

Easy to operate

Safe and stable

Robust and durable

Universal Dividing Head For Milling Machine Product Features

Universal Dividing Head For Milling Machine is suitable for CNC milling machine indexing workpiece processing

Spindle accuracy: 0.03mm

Indexing accuracy: 120 seconds

Made of cast iron, sturdy and durable

Made of FC30 cast iron, the workpiece can be indexed around its own axes, such as hexagonal, gear, spline, and other parts.

The adjustable angle can stand or lie down

Direct indexing plate can do 2/3/4/6/8/12/24 etc. fast division

1. The workpiece can be divided in any circumference or in a straight line.

2. The workpiece can be clamped into the required angle (vertical, horizontal, or inclined)

The reduction ratio of 1:40, easy to operate

Three jaw chucks can be attached to do core machining

Match with milling machine attachment gear to do linkage processing

CNC dividing head angle can be adjusted

Dividing head for the Milling machine Indexing head angle can be adjusted- DGMF Mold Clamps Co., Ltd
Dividing head for the Milling machine Indexing head angle can be adjusted- DGMF Mold Clamps Co., Ltd

Universal Dividing Head For Milling Machine 0-90 degrees adjustment chart

Adjustable head angle of dividing head 0-90 degrees adjustment chart display - DGMF Mold Clamps Co., Ltd
Adjustable head angle of dividing head 0-90 degrees adjustment chart display – DGMF Mold Clamps Co., Ltd

What the universal dividing head is used for?

Universal Dividing Head For Milling Machine Product use function introduction

DGMF-Mold-Clamps-K11 Universal Dividing Head For Milling Machine is a simple type of universal indexing center. It can be used for direct and indirect indexing methods, close-up indexing, and spiral-type processing within, with no accessories. Still, the entire indexing head structure and tailstock are the same as the Wanli type.

The universal indexing head is a machine tool attachment mounted on a milling machine to divide the workpiece into equal parts.

By using the indexing ring and vernier, the positioning pin and indexing disc and the exchange gear, the workpiece mounted between the ejector pins or on the chuck can be divided into any angle, and the circumference can be divided into any equal parts to assist the machine tool in processing various grooves, spur gears, helical spur gears, Archimedes solenoid cams, etc. with various shapes of tools.

1. It can divide the workpiece into arbitrary circumference equal parts or for linear shift indexing.

2. The workpiece can be clamped into the required angle (vertical, horizontal, or inclined).

Universal Dividing Head For Milling Machine Structure:

The base of the indexing head is equipped with a rotary body, and the spindle of the indexing head can rotate with the rotary body in the vertical plane within the range of 90 degrees up and 10 degrees down.

The front end of the spindle is often equipped with a three-jaw chuck or thimble.

When indexing, pull out the positioning pin, turn the handle, and drive the worm gear to rotate through the straight cylindrical gear with the tooth ratio of 1:1, and drive the spindle to rotate and index through the worm gear with the tooth ratio of 1:40.

When the indexing head handle rotates one turn, the worm wheel can only drive the spindle to turn 1/40th of a turn. At this time, the number of revolutions n required to be turned by the indexing handle is 1:40=1/z:n,n=40/z.

Universal Dividing Head For Milling Machine Indexing type:

Universal Dividing Head For Milling Machine Direct indexing:

The workpiece can be indexed or equally indexed using the 360° dial on the spindle, and the indexing value is 1″.

Universal Dividing Head For Milling Machine Precision indexing:

The workpiece can be equally indexed (2 equal parts ~ 210 equal parts) by using the indexing discs (3 pieces) through the flexible handgrip, and this indexing method is the most widely used. The number of turns n of the positioning handle can be decided according to different needs.

The function of the universal dividing head:

1. To index the workpiece around its own axis (equal or unequal). Such as hexagon, gear, spline key, and so on parts.

2. Make the axis of the workpiece relative to the milling machine table into the required angle (horizontal, vertical, or inclined). Therefore, different angles of slopes can be machined.

3. When milling spiral grooves or cams, the workpiece can be continuously rotated with the movement of the table.



The Universal Dividing Head For Milling Machine Spare parts

Universal Dividing Head For Milling Machine Model: DGMF-Mold-Clamps-K11

CNC dividing head universal indexing head components Universal dividing head Spare parts - DGMF Mold Clamps Co., LTD
CNC dividing head universal indexing head components Universal dividing head Spare parts – DGMF Mold Clamps Co., LTD

Universal Dividing Head For Milling Machine, How to Install CNC Dividing Head for Milling Machine?
